Clean and controlled air is important for many industrial, commercial and manufacturing environments. Dust, dirt, airborne particles and other contaminants can affect indoor air quality, equipment performance and sensitive production processes.
A 3-stage air filtration system is designed to improve air cleanliness by passing air through multiple filtration stages. Instead of depending on a single filter, the system uses different filters to progressively remove particles of different sizes.
A typical 3-stage air filtration system consists of:
Stage 1: Pre Filter → Stage 2: Fine Filter → Stage 3: HEPA Filter
Each stage performs a different function and helps prepare the air for the next level of filtration.
What Is a 3-Stage Air Filtration System?
A 3-stage air filtration system is a multi-level air-cleaning arrangement in which air passes through three different filtration stages before entering the required space.

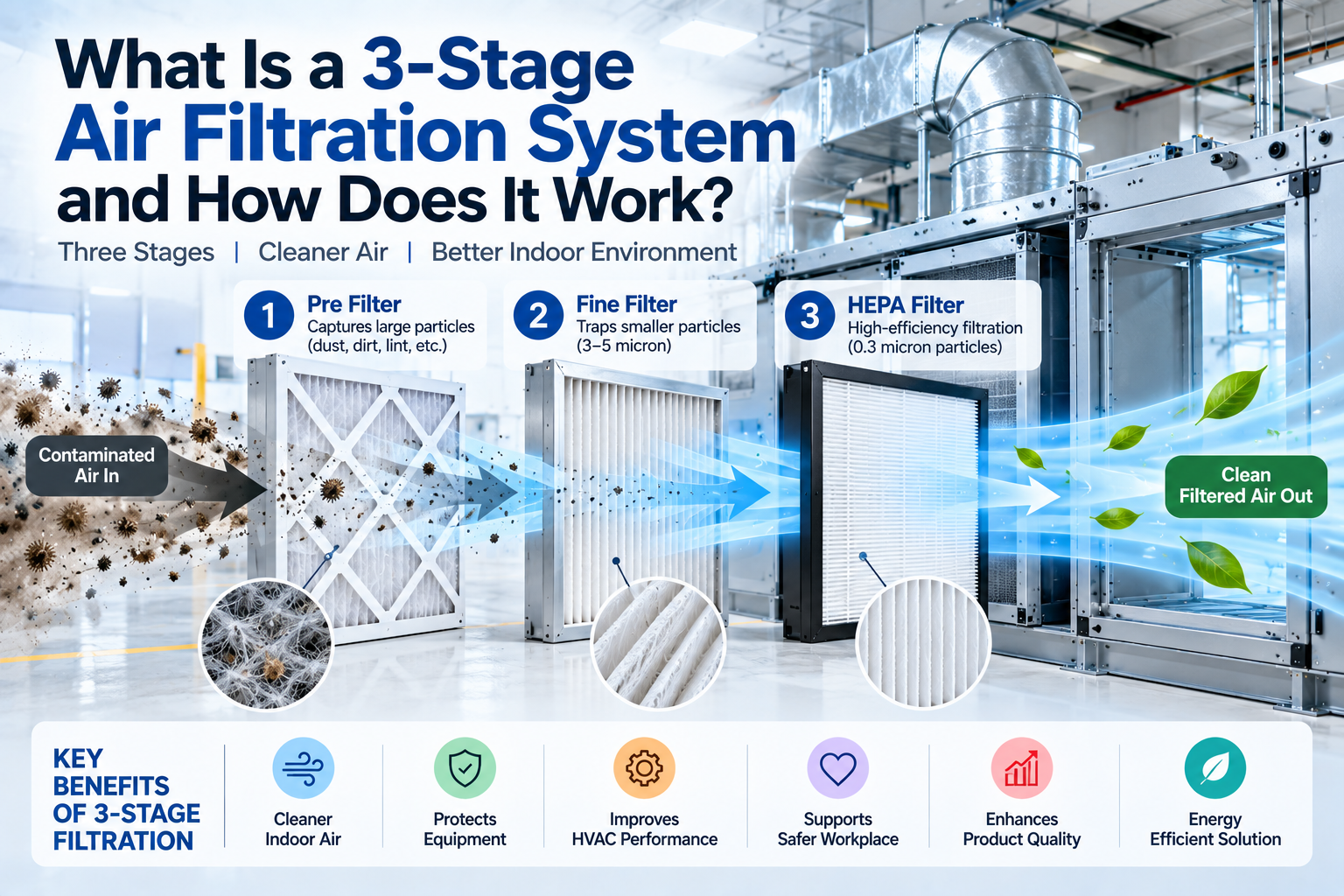

The basic process is:
Contaminated Air
↓
Pre Filter
↓
Fine Filter
↓
HEPA Filter
↓
Clean Filtered Air
The first stage captures larger particles, the second stage provides finer filtration, and the final stage can provide high-efficiency filtration for applications requiring a higher level of air cleanliness.
This type of filtration arrangement can be useful in manufacturing facilities, pharmaceutical plants, healthcare environments, clean rooms, HVAC systems and other applications.
How Does a 3-Stage Air Filtration System Work?
Let's understand each stage in detail.
Stage 1: Pre Filter
The pre filter is the first stage of filtration.
Incoming air may contain larger particles such as:
-
Dust
-
Dirt
-
Lint
-
Fibres
-
Larger airborne particles
-
Other coarse contaminants
The pre filter captures a significant portion of these larger particles before the air reaches the next filtration stage.
Why Is a Pre Filter Important?
The pre filter helps reduce the particle load on the downstream filters.
Without an appropriate first-stage filter, larger particles could reach the fine filter and HEPA filter more quickly, potentially increasing their loading.
Therefore, pre-filtration can be an important part of a multi-stage filtration strategy.
Stage 2: Fine Filter
After passing through the pre filter, the air moves to the fine filtration stage.
Fine filters are designed to capture smaller particles that may pass through the first stage.
They are commonly used in HVAC and air-handling systems where a higher level of filtration is required before the final filtration stage.
Depending on the filter specification and application, fine filters can be available in different efficiencies and configurations.
Why Is Fine Filtration Important?
The fine filter provides an intermediate level of filtration between the pre filter and the final high-efficiency filter.
This can help reduce the amount of smaller particulate matter reaching the HEPA filter.
As a result, the filtration system can operate as a progressive process:
Large Particles → Smaller Particles → High-Efficiency Final Filtration
Stage 3: HEPA Filter
The final stage in many 3-stage air filtration systems is a HEPA filter.
HEPA stands for High-Efficiency Particulate Air.
HEPA filters are designed for high-efficiency removal of airborne particles and are widely used in applications where cleaner and more controlled air is required.
These applications can include:
-
Pharmaceutical manufacturing
-
Clean rooms
-
Healthcare facilities
-
Electronics manufacturing
-
Laboratories
-
Food processing
-
Industrial manufacturing
The exact HEPA filter specification should be selected according to the application, airflow requirements and system design.
3-Stage Air Filtration Process Explained
The entire filtration process can be understood easily through three steps.
Step 1 – Capture Large Particles
The pre filter captures larger dust and airborne particles.
Step 2 – Capture Smaller Particles
The fine filter provides an additional level of filtration and captures smaller particles.
Step 3 – High-Efficiency Filtration
The HEPA filter provides the final high-efficiency filtration stage.
The result is cleaner air suitable for applications where controlled air quality is important.
What Are the Benefits of a 3-Stage Air Filtration System?
1. Improved Air Quality
Multiple filtration stages can help remove particles of different sizes from the air.
This can support cleaner indoor and industrial environments.
2. Better Protection for HEPA Filters
The pre filter and fine filter can remove larger and smaller particles before air reaches the HEPA filter.
This helps reduce the particle load reaching the final filtration stage.
3. Protection of Equipment
Airborne dust can accumulate on machinery, HVAC components and sensitive equipment.
A properly designed filtration system can help reduce airborne contamination reaching equipment.
4. Better HVAC Performance
Air filtration is an important part of HVAC and air-handling systems.
Selecting the appropriate filter combination can help the system maintain the required level of air cleanliness while considering airflow and pressure-drop requirements.
5. Cleaner Manufacturing Environment
Manufacturing processes can generate dust and airborne particles.
A multi-stage filtration system can help control airborne contamination in production areas.
6. Suitable for Controlled Environments
Applications such as clean rooms, pharmaceutical manufacturing and electronics production may require higher levels of air filtration.
A multi-stage system can provide progressive filtration before air reaches the controlled environment.
Where Are 3-Stage Air Filtration Systems Used?
3-stage filtration can be used across a wide range of industries.
Pharmaceutical Industry
Pharmaceutical manufacturing may require controlled environments to minimize airborne contamination.
High-efficiency filtration, including HEPA filtration, can be an important part of these systems.
Healthcare Facilities
Hospitals, laboratories and healthcare environments may require high-efficiency filtration in specific areas.
The filtration requirement depends on the room and application.
Clean Rooms
Clean rooms require controlled environmental conditions.
A combination of pre-filtration, fine filtration and HEPA filtration can be used as part of a clean-room air-handling system.
Electronics Manufacturing
Dust and fine particles can affect sensitive electronic components.
High-efficiency filtration can help maintain cleaner manufacturing conditions.
Food Processing
Food manufacturing and processing facilities may require filtration solutions to support hygienic production environments.
General Manufacturing
Industrial manufacturing facilities can use multi-stage filtration to control airborne dust and particles generated during production.
Why Use Three Filtration Stages Instead of One?
A single filter has limitations.
If a high-efficiency filter is exposed directly to a large quantity of dust and larger particles, it may load more quickly.
A multi-stage approach distributes the filtration task.
For example:
Pre Filter
Captures larger particles
↓
Fine Filter
Captures smaller particles
↓
HEPA Filter
Provides high-efficiency final filtration
This progressive filtration approach can help create a more practical filtration system for demanding applications.
What Is the Difference Between Pre Filter, Fine Filter and HEPA Filter?
| Filter Type | Main Purpose | Position |
|---|---|---|
| Pre Filter | Captures larger particles | First stage |
| Fine Filter | Captures smaller particles | Second stage |
| HEPA Filter | High-efficiency particle filtration | Final stage |
The exact efficiency and filter specification should always be selected according to the application and HVAC system requirements.
How to Choose the Right 3-Stage Filtration System
Choosing the correct filtration system requires more than selecting three different filters.
Several factors should be considered.
Airflow
Determine the required airflow of the HVAC or air-handling system.
Particle Load
Consider how much dust and particulate matter is generated in the environment.
Required Filtration Level
Different applications require different levels of filtration.
A general manufacturing area may have different requirements from a pharmaceutical clean room.
Pressure Drop
Filter pressure drop should be considered when designing or selecting a filtration system.
Excessive resistance can affect airflow and HVAC performance.
Filter Dimensions
Filters must be compatible with the existing AHU, HVAC system or filter housing.
Operating Environment
Temperature, humidity, dust concentration and other environmental conditions can affect filter performance and service life.
Maintenance Requirements
The filtration system should be regularly inspected and maintained.
Filters should be replaced when required based on their condition, pressure drop, manufacturer's recommendations and application requirements.
How to Maintain a 3-Stage Air Filtration System
Regular maintenance is important for maintaining filtration performance.
Maintenance teams should check:
-
Filter condition
-
Dust loading
-
Pressure drop
-
Airflow
-
Filter sealing
-
Filter damage
-
Moisture
-
Installation condition
A filter that is damaged, incorrectly installed or heavily loaded may not perform as expected.
Keeping records of filter installation and replacement dates can also help facility managers create an effective maintenance schedule.
Why Choose a Professional Air Filtration Manufacturer?
Every facility has different filtration requirements.
A professional air filtration manufacturer can help businesses select solutions according to:
-
Airflow requirements
-
Filter dimensions
-
Application
-
Required efficiency
-
HVAC configuration
-
Environmental conditions
-
Maintenance requirements
AP Filterations provides air filtration products and solutions for industrial, commercial and other specialized applications.
The company works with filtration requirements across areas such as manufacturing, HVAC, pharmaceutical, healthcare, food and electronics.
Conclusion
A 3-stage air filtration system provides a progressive approach to air filtration by combining different filtration stages.
The basic process is:
Pre Filter → Fine Filter → HEPA Filter
The pre filter captures larger particles, the fine filter provides additional filtration for smaller particles, and the HEPA filter provides high-efficiency final filtration where required.
This type of system can be useful in manufacturing facilities, pharmaceutical plants, clean rooms, healthcare environments, electronics manufacturing and HVAC applications.
The right combination of filters should always be selected according to the specific application, airflow, particle load, required filtration efficiency, pressure drop and operating conditions.
For businesses looking for industrial air filtration systems, HVAC filters, fine filters and HEPA filtration solutions, AP Filterations can provide filtration products and application-specific solutions.
Frequently Asked Questions
What is a 3-stage air filtration system?
A 3-stage air filtration system uses three filtration levels, commonly a pre filter, fine filter and HEPA filter, to progressively remove airborne particles.
What are the three stages of air filtration?
The three common stages are:
-
Pre filtration
-
Fine filtration
-
HEPA filtration
Why is a pre filter used before a HEPA filter?
A pre filter captures larger particles before air reaches the HEPA filter. This can help reduce the particle load on the final filtration stage.
Is a HEPA filter necessary in every 3-stage system?
Not necessarily. The required filtration level depends on the application and air-quality requirements. HEPA filtration is generally used where high-efficiency particle filtration is required.
Where are 3-stage air filtration systems used?
They can be used in manufacturing, pharmaceutical facilities, clean rooms, healthcare, electronics, food processing and HVAC applications.
How often should the filters be replaced?
Replacement frequency depends on filter type, operating conditions, dust loading, pressure drop and application. Filters should be inspected regularly and replaced according to their condition and manufacturer's recommendations.
